CompactFlash Memory Card Specifications - Pretec (Industrial Grade)

Pretec Tiger series Industrial CompactFlash Cards use a proprietary patented high speed flash controller and SLC NAND-Type flash memory devices, leading to it's remarkable performance, reliability, durability, and is available in capacities from 256MB to 16GB unformatted.

Compliant with ISA (Industrial Standard Architecture) bus interface standard, the Tiger series Industrial CompactFlash card performs sequential read/write for each sector (512 bytes) count. It also conforms to CompactFlash Specification and is designed with precision mechanics to enable host devices to read/write from the CompactFlash interface to flash media. It can operate with a 3.3V or 5V singe power from the host.

Pretec's metal housing Tiger series Industrial CompactFlash Card provides an extraordinary high-performance and high-reliability memory medium for PC, Embedded PC, or any other electronic application which can benefit from the rewards of using flash.

Pretec's CompactFlash card has been approved through various compatibility tests to be used in numerous portable desktop and notebook computers as well as personal handheld devices such as handheld audio and data recorders, PDA's, Palm Sized PC's, Handheld PCs, and Auto PCs under industrial environments.

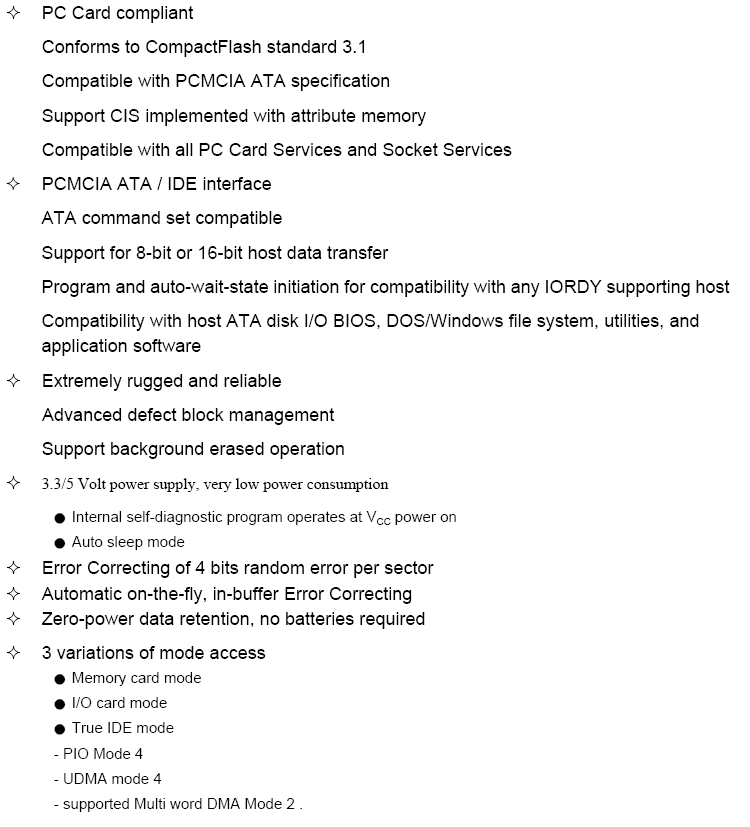

Features:

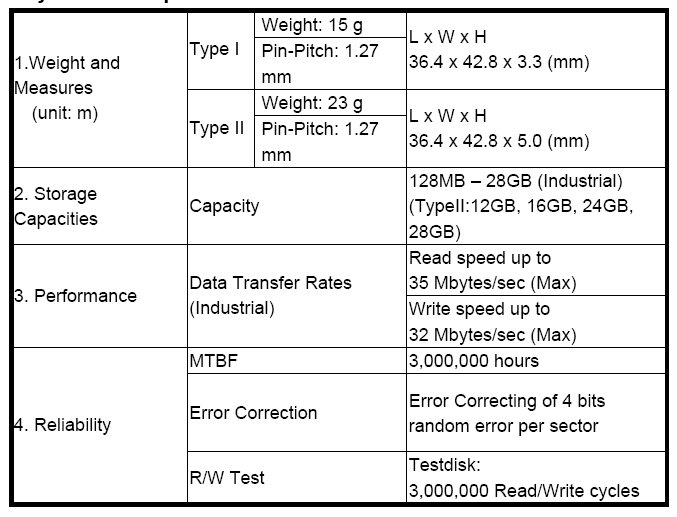

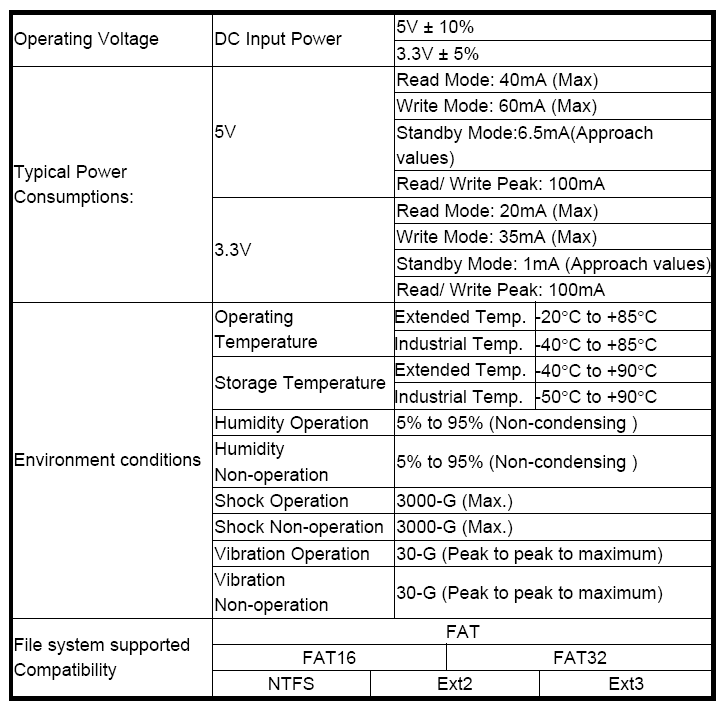

Specification:
