Industrial Grade U.2 PCIe NVMe 2.5" SSD




Amtron supplies the following industrial grade U.2 PCIe NVMe 2.5" solid state drive (SSD) to industrial, medical, and military customers.

NVMe stands for Non-Volatile Memory Express


Amtron SMART Modular




        National Stock Number List

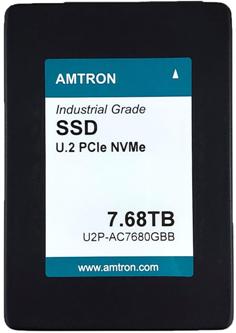

Amtron Industrial U.2 PCIe NVMe SSD

3D TLC NAND Flash

[ Datasheet ]      [ Warranty ]



- Read: 3,200 MB/s max. ;  Write: 1,000 MB/s max.
- Vibration: 20G  ;  Shock: 1,500G
- MTBF:  >1,500,000 hours
- AES256 & TCG OPAL  [Optional]
- Power Loss Protection  [Optional]




0C to +70C -40C to +85C
Capacity Part Number Capacity Part Number
240GB U2P-AC0240GBA 240GB U2P-AC0240GBB
480GB U2P-AC0480GBA 480GB U2P-AC0480GBB
960GB U2P-AC0960GBA 960GB U2P-AC0960GBB
1920GB U2P-AC1920GBA 1920GB U2P-AC1920GBB
3840GB U2P-AC3840GBA 3840GB U2P-AC3840GBB
7680GB U2P-AC7680GBA 7680GB U2P-AC7680GBB

.

Price

Please contact Sales Department at sales@amtron.com, phone (323) 265-8076, or fax (323) 488-9747, to inquire the most updated pricing and lead time provided by the manufacturer.






SMART Modular Industrial U.2 PCIe NVMe SSD

TLC NAND Flash

[ Product & Part Number ]



Price

Please contact Sales Department at sales@amtron.com, phone (323) 265-8076, or fax (323) 488-9747, to inquire the most updated pricing and lead time provided by the manufacturer.




Support & Warranty

 Free technical support and warranty are provided by Amtron Technology and the respective manufacturers.
