Industrial Grade
CFexpress Memory Card
 |
Industrial grade CFexpress memory card for industrial, medical, and military customers.
| National Stock Number List | |
|

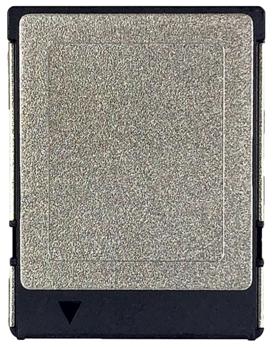

Amtron Industrial CFexpress Card AE Series Write Protect [ Optional feature ] 3D Triple-level cell (TLC) NAND flash memory |
|
Features [
Datasheet
]
| - | CFexpress Type B form factor |
| - | PCI Express Base Version 3.1 and Compliant with NVMe 1.3 |
| - | PCIe Gen3 x 2 lane and backward compatible to PCIe Gen2 and Gen1 |
| - | High Speed: 1,700 MB/sec max. (Read), 1,400 MB/sec max. (Write) |
| - | MTBF> 2,000,000 hours |
| - | Support SMART |
| - | RoHS compliant |
| - | Vibration: 20G; Shock: 1500G |
| - | Optional write protect and conformal coating are available upon request |
| - | 2 years warranty |
￭ 0°C to +70°C
| Partial Capacity * | Full Capacity | ||
| Capacity | Part Number | Capacity | Part Number |
| 120GB | CFX-AE120GBA | 128GB | CFX-AE128GBA |
| 240GB | CFX-AE240GBA | 256GB | CFX-AE256GBA |
| 480GB | CFX-AE480GBA | 512GB | CFX-AE512GBA |
| 960GB | CFX-AE960GBA | 1TB | CFX-AE001TBA |
* In
order to increase the life of NAND flash memory, firmware sets aside some more space for Over-Provisioning (OP)
technology to optimize the wear leveling (WL), garbage collection (GC),
bad block management (BBM) operations. This method reduces the data storage space, but increases
the CFexpress card life.
|
Price Please contact Sales Department at sales@amtron.com, phone (323) 265-8076, or fax (323) 488-9747, to inquire the most updated pricing and lead time |
￭ -40°C to +85°C
| Partial Capacity * | Full Capacity | ||
| Capacity | Part Number | Capacity | Part Number |
| 120GB | CFX-AE120GBB | 128GB | CFX-AE128GBB |
| 240GB | CFX-AE240GBB | 256GB | CFX-AE256GBB |
| 480GB | CFX-AE480GBB | 512GB | CFX-AE512GBB |
* In
order to increase the life of NAND flash memory, firmware sets aside some more space for Over-Provisioning (OP)
technology to optimize the wear leveling (WL), garbage collection (GC),
bad block management (BBM) operations. This method reduces the data storage space, but increases
the CFexpress card life.
|
Price Please contact Sales Department at sales@amtron.com, phone (323) 265-8076, or fax (323) 488-9747, to inquire the most updated pricing and lead time |
Support & Warranty
Free technical support and warranty are provided by Amtron Technology and the respective manufacturers.
